LC-MBSI-EC312
New product
» Stock Location: (0/1/0/0/0)
» Pick-up: is available. 2 hours after payment clears, confirm with sales
» Delivery: FREE delivery! Option to pay extra to choose fast Courier with insurance at check out
» Brand: SIMPLECOM
» Manuf. PN: EC312
» Actual Weight(estimate): 0.1
» Return Policy: This item is: "NON-RETURNABLE".
» Exceptions: Returns for DOA/Warranty defective as per our return policy.
» Warranty: Manufacturers warranty. Buy with confidence at our store, knowing that most of our products are sourced from local suppliers, are brand new, and come with Australian warranty.
1 Item Items
In Stock
Warning: Last items in stock!
Availability date: 25/02/2024

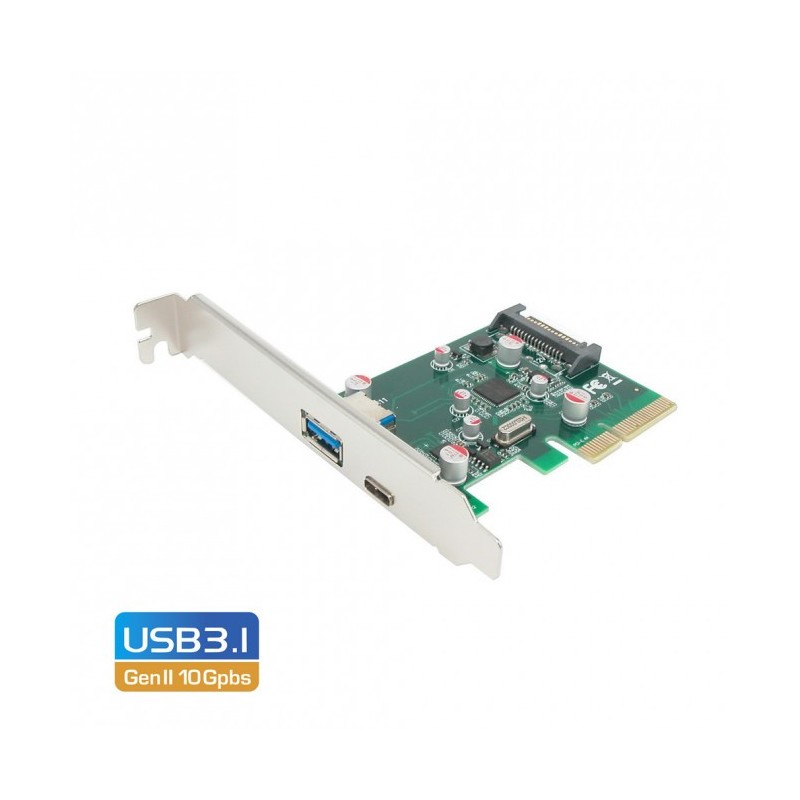

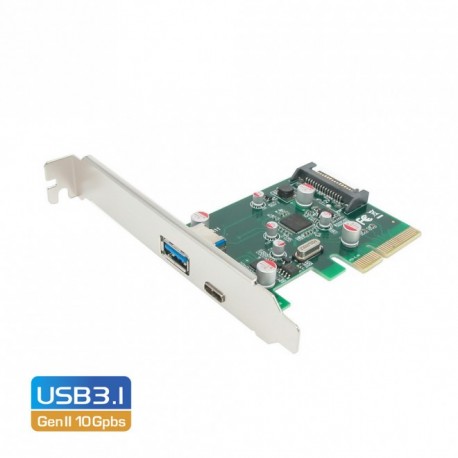

Simplecom EC312 PCI-E 2.0 x4 to 2 Port USB 3.1 Gen II 10Gpbs Type-C and Type-A Card(LS)
• EC312 provides both SuperSpeed+ USB 3.1 Type-C and Type-A ports, this USB 3.1 Generation II Expansion Card delivers the necessary bandwidth and features required by modern PCs and portable devices.
• Featuring one Type-A and also an additional USB Type-C port, it works up to 10Gbps for data transfer when connecting to USB 3.1 Gen II compliant peripherals, while maintaining compatibility with existing USB peripheral devices. USB 3.1 Gen II performance is 2 times faster than USB 3.1 Gen I and 20 times faster than USB 2.0 connectivity.
• With next generation USB Type-C reversible connector, which means that users will no longer need to be concerned with plug orientation/cable direction, making it easier to plug in. This card is an ideal choice for external storage devices, digital cameras, webcam, video devices, and all other USB devices. The card draws power from the host computer via any available SATA power connector.
• Features
• Compliant with Universal Serial Bus 3.1 specification Gen2
• PCI Express Base Specification Revision 2.0 four lane ( x4)
• Compliant with xHCI (eXtensible Host Controller Interface) specifications Revision 1.1
• Supports simultaneous operation of multiple USB 3.1, 3.0, USB 2.0 and USB 1.1 devices
• Built-in over current protection on each USB port
• Specifications
• Bus: PCI Express Spec 2.0, Four Lane (x4)
• Controller: PCI Express USB 3.1 Host controller
• USB Standard: eXtensible Host Controller Interface (xHCI) Rev1.1
• Interface: Universal Serial Bus 3.1 / 3.0 / 2.0
• Speed: SuperSpeed+ (10Gpbs), SuperSpeed (5Gpbs), HiSpeed (480Mbps), Full Speed (12Mbps)
• Source: +5VDC / SATA Power Connector Type
• Output Capacity: USB Type-C Port: +5VDC / Maximum 3.0A / each port
• Supported System: Windows: Windows Vista, 7, 8 ,10 (32/64 Bit)
* If there is no enough information here for you to make a purchase decision, we suggest you to visit manufacturer's website for more details using their part number listed above. Alternatively, you can either call or email us to make an enquiry.
